Manufacturing Process
Sheet Metal,
Stamping
& Welding.
Laser cut. Stamped. Punched. Bent. Rolled. MIG welded. TIG welded. Structural welded. Finished. End-to-end sheet metal and welding under one roof — from raw flat sheet to fully fabricated, welded, and finished assembly. One partner. One quality system. One delivery.
Scroll
Raw Sheet
MS · SS · Al · GI · 0.5–25mm thick
Cut / Stamp / Punch
Laser · press stamp · CNC punch
Form / Bend / Roll
Press brake · roll bending · forming
Weld / Join / Assemble
MIG · TIG · spot · structural
Finish & Inspect
Powder coat · HDG · shot blast · CMM
End-to-End Process
From Flat Sheet to Finished Assembly — One Partner.
Amsol's sheet metal capability covers the complete manufacturing chain — cutting, stamping, forming, welding, and finishing — under one quality system. No transfer between separate suppliers. No dimension loss at each handover. One inspection report covering the complete fabrication.

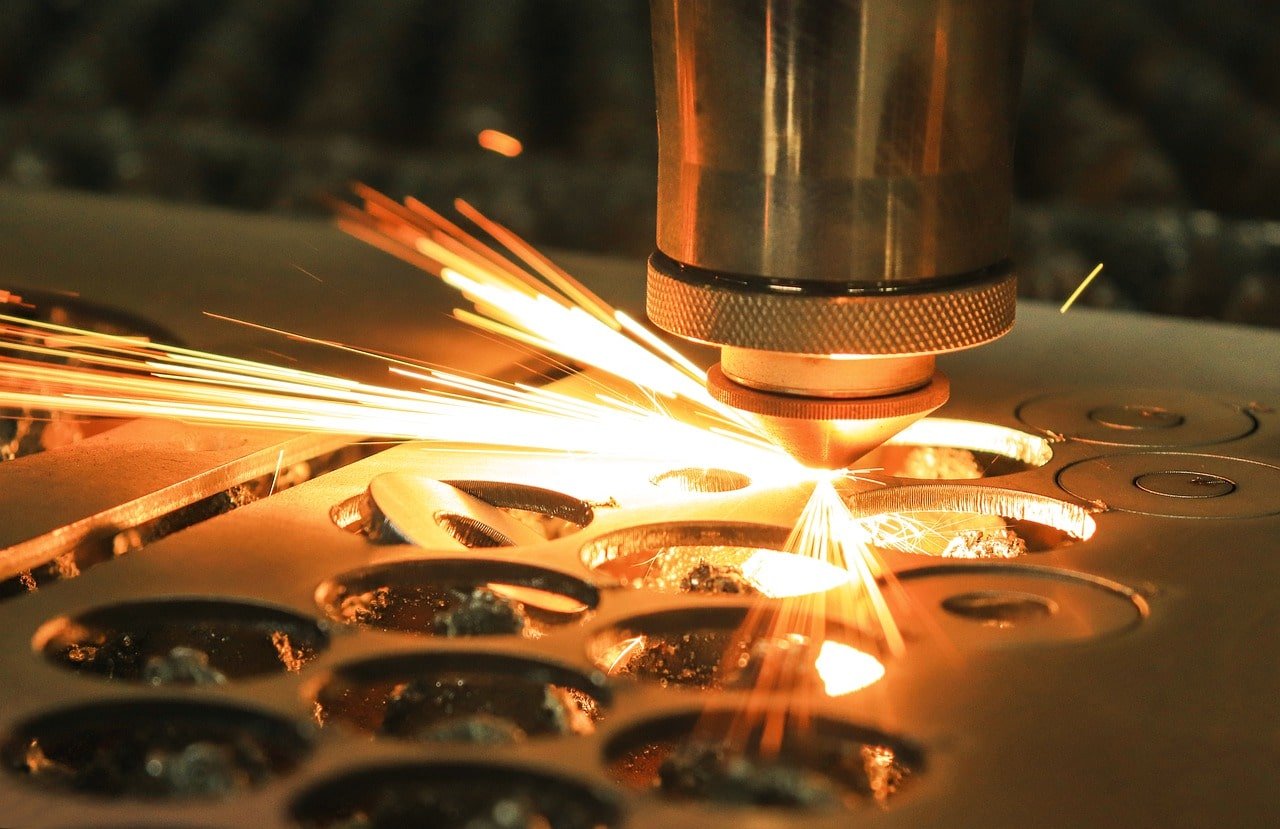

Process 01 — Cutting
Laser Cutting & CNC Punch
⚡ Laser Cutting & CNC Punch
±0.1mm. Any Profile. Any Hole Pattern.
Laser cutting produces any 2D profile from flat sheet with ±0.1mm accuracy — no tooling cost, no setup time per profile, no minimum order. CNC punching for repetitive hole patterns, louvres, and knockouts in high-volume production. Both processes work on mild steel, stainless, aluminium, and galvanised sheet from 0.5mm to 25mm thickness.
±0.1mm
Laser cut accuracy
0.5–25mm
Sheet thickness range
No
Tooling cost (laser)
3000×1500
Max sheet size (mm)
Stamping — High Volume. Precise. Low Cost Per Part.
Progressive die stamping and blanking for high-volume sheet metal components. Where laser cutting is flexible, stamping is fast and economical at volume — the same part produced thousands of times per hour with no per-part processing cost. Amsol's stamping capability covers blanking, piercing, drawing, embossing, and coining from mild steel, stainless, aluminium, and copper strip.
Process 02 — Stamping
Progressive Die Stamping & Blanking
🔨 Progressive Die Stamping
Blanking. Piercing. Drawing. Embossing. Volume from 5,000/year.
Progressive die stamping feeds strip material through a series of die stations — each station adds one forming operation — until the finished component exits at the end. One press stroke produces one complete part. At volumes from 5,000 per year, stamping delivers the lowest cost-per-part of any sheet metal process. Amsol's stamping covers blanking (cut to shape), piercing (holes), drawing (3D forms), embossing (raised features), and coining (precision thickness).
±0.05mm
Stamping tolerance
0.3–6mm
Sheet thickness
5K+
Volume from (per year)
Multi
Operations per stroke
Process 03 — Forming
CNC Press Brake Bending & Roll Forming
📐 Bending & Roll Forming
±0.5° Angular Accuracy. Complex Multi-Bend Profiles.
CNC press brake bending converts flat laser-cut blanks and stamped parts into 3D forms — brackets, enclosures, channels, frames, and structural sections. CNC back gauge ensures ±0.5° angular accuracy on every bend. Roll forming for cylindrical and conical profiles — tanks, pipes, curved enclosures. Multi-stage bending for complex profiles with 4+ bends programmed and verified on first article before production.
±0.5°
Angular accuracy
±0.3mm
Position tolerance
4000mm
Max bending length
Multi
Bend sequences
Process 04 — Welding
MIG · TIG · Spot · Structural Welding
🔥 MIG · TIG · Structural Welding
AWS D1.1. Coded Welders. Full Weld Inspection.
Welding is where sheet metal parts become assemblies — and where quality discipline matters most. Amsol's welding operation covers MIG (GMAW) for structural and high-production fabrications, TIG (GTAW) for precision stainless and aluminium welding, spot welding for thin-sheet automotive-style assemblies, and structural welding to AWS D1.1. All welders are qualified. Weld quality verified by visual inspection, dimensional check, and NDT where specified.
AWS D1.1
Structural weld standard
MIG+TIG
Both processes
Coded
Welder qualification
NDT
On request
Weld Quality & Inspection
Six Weld Quality Standards Amsol Maintains
A perfectly cut and bent bracket becomes useless if the weld is inconsistent, under-penetrated, or distorted. Amsol's welding quality system covers every joint on every assembly.
AWS D1.1 Structural
Structural welding to American Welding Society D1.1. Pre-qualified joint details. Procedure qualification records maintained. Applicable to all structural steel fabrications.
Qualified Welders
All Amsol welders qualified to relevant welding procedure specifications. Qualification records maintained. Welder performance tracked per process and material.
Visual Inspection (VT)
100% visual inspection on all welds. Bead profile, size, length, undercut, overlap, and surface porosity checked against drawing specification before assembly moves to next stage.
Dimensional After Weld
Critical dimensions re-verified after welding by CMM or checking fixture. Welding distortion controlled by fixture and sequence — not corrected after the fact.
NDT — PT / UT on Request
Penetrant testing (PT) for surface defects on stainless and aluminium welds. Ultrasonic testing (UT) for internal soundness on structural welds where specified. Both available on request.
Pressure Test Available
Hydrostatic and pneumatic pressure testing for welded vessels, tanks, and pressure-containing fabrications. Test pressure to customer specification. Certificate issued.
Material Capability
Sheet Metal Materials — Full Range
Every material below is available across all sheet metal processes — laser cut, stamped, punched, bent, rolled, and welded. Material grade confirmed by spectrometer on all stainless and engineering-critical specifications.
| Material | Thickness Range | Processes Available |
|---|---|---|
| Mild Steel (IS 2062 / S275) | 0.5mm – 25mm | Laser · Stamp · Bend · MIG Weld · HDG |
| Stainless Steel SS304 | 0.5mm – 12mm | Laser · Stamp · Bend · TIG Weld · Passivate |
| Stainless Steel SS316 | 0.5mm – 10mm | Laser · Bend · TIG Weld · Passivate · Electropolish |
| Aluminium 5052 / 6061 | 0.5mm – 10mm | Laser · Stamp · Bend · TIG Weld · Anodise |
| Galvanised Steel (GI) | 0.5mm – 3mm | Laser · Stamp · Bend · MIG Weld |
| Copper / Brass | 0.3mm – 6mm | Laser · Stamp · Bend · TIG/Brazing |
| High-Strength Steel (S355) | 2mm – 25mm | Laser · Bend · Structural MIG Weld · AWS D1.1 |
Surface Finishing
Post-Fabrication Surface Treatment
Amsol coordinates all surface finishing treatments through qualified sub-processors — managed under Amsol's quality system with certificates on every batch.
🔫
Shot Blasting
Sa 2.5 surface preparation · removes scale, rust, and mill finish · mandatory before powder coat or paint
🎨
Powder Coating
Thermosetting polymer powder · any RAL colour · 60–120µm · corrosion protection · UV resistant outdoor grade
🏊
Hot-Dip Galvanising
IS 2629 / BS EN ISO 1461 · zinc coating 85µm minimum · outdoor structural · 25-year corrosion protection
⚗️
Passivation & Anodising
SS passivation (citric/nitric) · Al anodising standard and hard-coat · electropolishing for food/pharma
Facility
The Amsol Sheet Metal & Fabrication Floor
Actual process visuals for laser cutting, stamping, bending, welding, and finished fabrication capability across Amsol's sheet metal workflow.
Amsol Facility · Rajkot
Sheet Metal & Fabrication Floor
Process
Laser Cutting in Operation
Stamping
Progressive Die Stamping
Cutting
CNC Metal Cutting
Product
Finished Steel Fabrications
Industry Applications
Where Amsol Sheet Metal & Fabrications Go
Structural fabrications, stamped components, and welded assemblies active across 7 industries.
Agriculture
Tractor panel covers · instrument housings · structural equipment frames · HDG brackets
Active SupplyRailways
Carriage mounting brackets · fabricated structural frames · cable tray assemblies
Active SupplyEnergy — Solar
Solar panel mounting frames · cable tray brackets · junction box bodies · galvanised structural
Active SupplyConstruction
Structural steel frames · anchor plates · cable management systems · AWS D1.1 weldments
Active SupplyElectrical
Switchgear panels · DIN rail enclosures · stamped terminal components · busbar covers
StampingAutomotive
Stampings for body reinforcements · brackets · clips · chassis components · high volume
StampingGeneral Engineering
Custom enclosures · machine guards · access panels · structural frames · any specification
Any Industry
Quality Assurance
From Raw Sheet to Finished Assembly. Verified at Every Stage.
Sheet metal fabrication quality is built in at every process step — not inspected at the end. Dimensional verification after cutting, after forming, and after welding.
Dimensional Check
Critical dimensions checked after laser cut, after bending, and after welding. CMM report on complex fabrications.
Weld Visual (VT)
100% visual inspection on all welds — bead size, length, undercut, overlap, porosity checked vs drawing.
Spectrometer — SS/Al
SS304/316 and aluminium material grade confirmed by OES spectrometer. MTC issued per batch.
NDT — PT / UT
Penetrant testing for surface defects. UT for internal soundness on structural welds. Available on request.
Pressure Testing
Hydrostatic and pneumatic testing for welded pressure-containing fabrications. Certificate issued.
ISO 9001:2015
All sheet metal and welding processes under Amsol's ISO 9001:2015 system. Annual audit. Procedure documentation.
Get Started
Sheet Metal, Stamping
Sheet Metal, Stamping
or Welding Drawing?
Share your drawing with material grade, thickness, quantity, and finish requirement. Amsol provides a fully itemised fabrication and welding cost within 24 hours.
✓ DFM in 24 hours✓ NDA available✓ ISO 9001:2015✓ Stamping + Welding included
